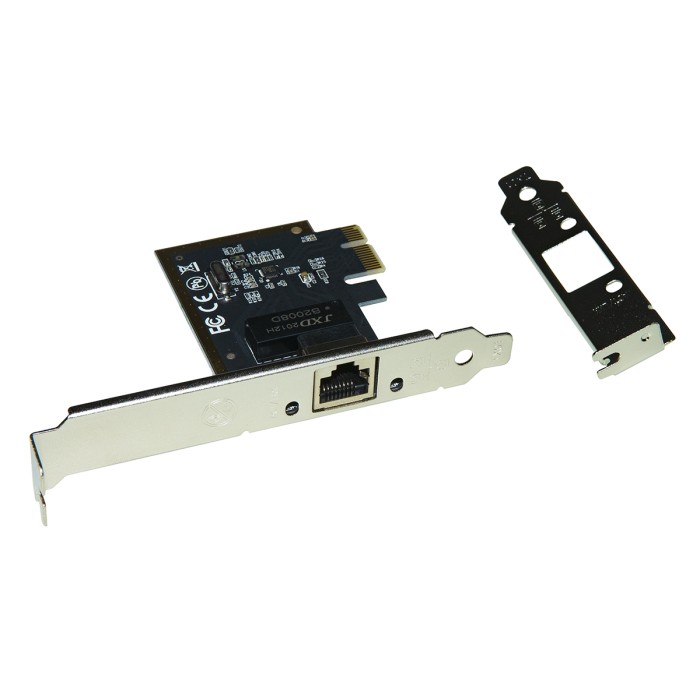

SCHEDA DI RETE PCI-EXPRESS 1 PORTA RJ45 GIGABIT 10/100/1000 CON STAFFA NORMALE E LOW PROFILE
Dettagli
Scheda aggiuntiva di rete con una porta RJ45 per computer con BUS PCI-Express.Con questa scheda si può aggiungere 1 porta RJ45 8 poli femmina su un PC con bus PCI-Express, per collegamenti di rete.Conforme alle specifiche 10/100/1.000 IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab Supporta reti 10/100/1.000 Mbps con rilevamento e impostazione automatica Collegamento: 1x RJ45 LAN Auto MDIX, Full Duplex Conforme alle specifiche di base PCI Express 1.1 Staffa addizionale a basso profilo per usare la scheda anche in computer basso profilo Temperatura di esercizio: 0 - 70 °C Umidità di esercizio: 25% - 65% RH (senza condensa) Supporta Windows®10(32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000 Windows Server® 2012, 2008 R2, 2003(32/64) Mac OS® 10.x (Intel based, testato fino a 10.9) Linux 2.4.x e superiore(testato fino a 3.5) SPECIFICHE: Dimensioni 71,5x56 mm.Led: 10/100/1000Mbps(Link/Act) Chipset RTL8111H Auto-Negotiation CON FUNZIONE Next Page Supporta pair swap/polarity/skew correction Crossover Detection & Auto-Correction Wake-on-LAN e supporto remote wake-up .egolatore LDO integrato Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP), supporto Segmentation Task-offload (Large send v1 e Large send v2) Supporto EMAC-393 ECMA ProxZzzy Standard per sleeping host Supporta Full Duplex flow control (IEEE 802.3x) Supporta jumbo frame fino a 9K byte Pienamente compatibile con IEEE 802.3, IEEE 802.3u, IEEE 802.3ab Supporta IEEE 802.1P Layer 2 Priority Encoding Supporta IEEE 802.1Q VLAN tagging Supporta IEEE 802.3az-2010 (EEE) Embedded OTP memory Transmit/Receive on-chip buffer Supporta power down/link down power saving/PHY disable mode Switching regulator integrato Supporta PCI MSI (Message Signaled Interrupt) e MSI-X Supporta quad core Receive-Side Scaling (RSS) Supporta Protocol Offload (ARP & NS) Supporta Customized LED Supporta 1-Lane 2.5Gbps PCI Express Bus Supporta funzione hardware ECC (Error Correction Code) Supporta funzione hardware CRC (Cyclic Redundancy Check) 32-pin QFN ‘Green’ package
